Class Document

Namespace

OpenMEPRevit.Document

Assembly

OpenMEPRevit.dll

An object that represents an open Autodesk Revit project.

public class Document

Inheritance

object

Document

Inherited Members

object.ToString()

object.Equals(object)

object.Equals(object, object)

object.ReferenceEquals(object, object)

object.GetHashCode()

object.GetType()

object.MemberwiseClone()

Remarks

The Document object represents an Autodesk Revit project. Revit can have multiple projects open and multiple views to those projects. The active or top most view will be the active project and hence the active document which is available from the Application object.

Methods

Application(Document)

Get Application From Revit Document

public static Application Application(Document revitDocument)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

Returns

Application

Autodesk.Revit.ApplicationServices.Application

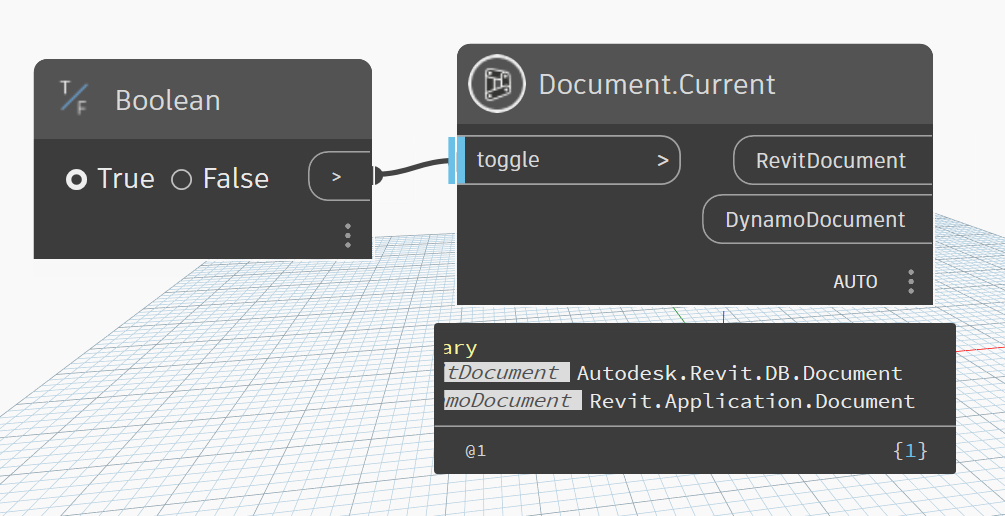

Current(bool)

Get Document Current

[MultiReturn(new string[] { "RevitDocument", "DynamoDocument" })]
public static Dictionary<string, object?> Current(bool toggle = true)

Parameters

toggle bool

toggle true to get current document

Returns

Dictionary<string, object>

Document of Revit Project

Examples

DisplayUnitSystem(Document)

Provides access to display unit type with in the document.

public static string DisplayUnitSystem(Document revitDocument)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

Returns

string

Return the display unit type, metric or imperial.

GetCloudFolderId(Document, bool)

Gets ForgeDM folder id where the model locates.

public static string GetCloudFolderId(Document revitDocument, bool forceRefresh = false)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

forceRefresh bool

Cached value will be refreshed by sending a service call when forceRefresh is true.

Returns

string

Remarks

It is empty for non-cloud model; It is cached in Revit model opened session after getting it if forceRefresh is false; ForgeDM folder id can be changed during Revit model opened session, set forceRefresh as 'true' to get new value.

Exceptions

RevitServerUnauthorizedException

Thrown when cannot get data from ForgeDM for Revit cloud model.

GetCloudModelPath(Document)

Gets the cloud model path of the cloud model.

[MultiReturn(new string[] { "CentralServerPath", "CloudPath", "Region", "ServerPath", "ModelGUID", "ProjectGUID" })]
public static Dictionary<string, object> GetCloudModelPath(Document revitDocument)

Parameters

revitDocument Document

Returns

Dictionary<string, object>

The cloud model path

Exceptions

InvalidOperationException

This Document is a not cloud model, cannot execute this operation.

GetCloudModelUrn(Document)

A ForgeDM Urn identifying the model.

public static string GetCloudModelUrn(Document revitDocument)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

Returns

string

Remarks

It is empty for non-cloud model; It is cached in Revit model opened session after getting it;

Exceptions

RevitServerUnauthorizedException

Thrown when cannot get data from ForgeDM.

GetHubId(Document)

Gets ForgeDM hub id where the model locates. It is cached in session.

public static string GetHubId(Document revitDocument)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

Returns

string

Id hub locates the model

Remarks

It is empty for non-cloud model; It is cached in Revit model opened session after getting it;

Exceptions

RevitServerUnauthorizedException

Thrown when cannot get data from ForgeDM for Revit cloud model.

GetProjectId(Document)

Gets ForgeDM project id where the model locates.

public static string GetProjectId(Document revitDocument)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

Returns

string

id of project locates the project

Remarks

It is empty for non-cloud model; It is cached in Revit model opened session after getting it;

Exceptions

RevitServerUnauthorizedException

Thrown when cannot get data from ForgeDM for Revit cloud model.

IsDetached(Document)

Identifies if a work-shared document is detached. Also, see Autodesk.Revit.DB.Document.IsWorkshared

[NodeCategory("Query")]
public static bool IsDetached(Document revitDocument)

Parameters

revitDocument Document

Returns

bool

true if work-shared document is detached

Remarks

Note that Autodesk.Revit.DB.Document.Title and Autodesk.Revit.DB.Document.PathName will be empty strings if a document is detached.

IsFamilyDocument(Document)

Identifies if the current document is a family document.

[NodeCategory("Query")]
public static bool IsFamilyDocument(Document revitDocument)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

Returns

bool

true if document is family document

IsLinked(Document)

Identifies if a document is a linked RVT

[NodeCategory("Query")]
public static bool IsLinked(Document revitDocument)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

Returns

bool

true if document is linked RVT

Title(Document)

Get Document Title

public static string Title(Document revitDocument)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

Returns

string

Title of Document

ToDynamoDocument(Document?)

Convert Revit Document to Dynamo Document

public static Document? ToDynamoDocument(Document? revitDocument)

Parameters

revitDocument Document

Autodesk.Revit.DB.Document

Returns

Document

Revit.Application.Document

ToRevitDocument(Document?)

Convert Dynamo Document to Revit Document

public static Document? ToRevitDocument(Document? dynamoDocument)

Parameters

dynamoDocument Document

Revit.Application.Document

Returns

Document

Autodesk.Revit.DB.Document
