Class Selection

Namespace

OpenMEPRevit.Document

Assembly

OpenMEPRevit.dll

public class Selection

Inheritance

object

Selection

Inherited Members

object.ToString()

object.Equals(object)

object.Equals(object, object)

object.ReferenceEquals(object, object)

object.GetHashCode()

object.GetType()

object.MemberwiseClone()

Methods

GetSelectedElements(bool)

Returns the selected elements in the current document.

[NodeCategory("Action")]
[NodeSearchTags(new string[] { "selection", "get", "selected", "elements" })]
public static List<Element> GetSelectedElements(bool flag)

Parameters

flag bool

flag true false to fresh

Returns

List<Element>

element selected

Examples

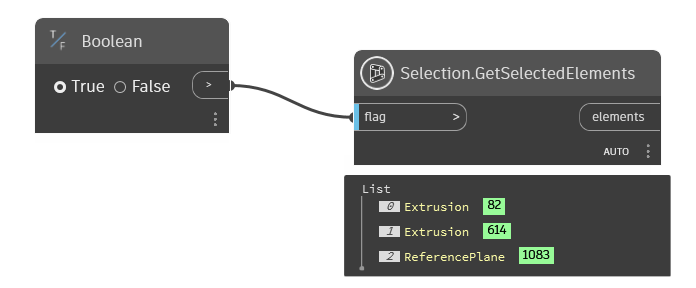

Selection.GetSelectedElements.dyn

PickElementsByRectangle(bool)

Pick Element By Rectangle In Current View

[NodeCategory("Action")]
[NodeSearchTags(new string[] { "selection", "pick", "rectangle", "element" })]
public static List<Element> PickElementsByRectangle(bool flag)

Parameters

flag bool

toggle true false to pick again

Returns

List<Element>

list element pick by Rectangle

Examples

Selection.PickElementsByRectangle.dyn

PickLinkElements(bool)

Pick Element In Linked Document

[NodeCategory("Action")]
[NodeSearchTags(new string[] { "selection", "pick", "link", "element" })]
public static List<Element> PickLinkElements(bool flag)

Parameters

flag bool

flag true false to fresh pick element

Returns

List<Element>

list element inside link elements

Examples

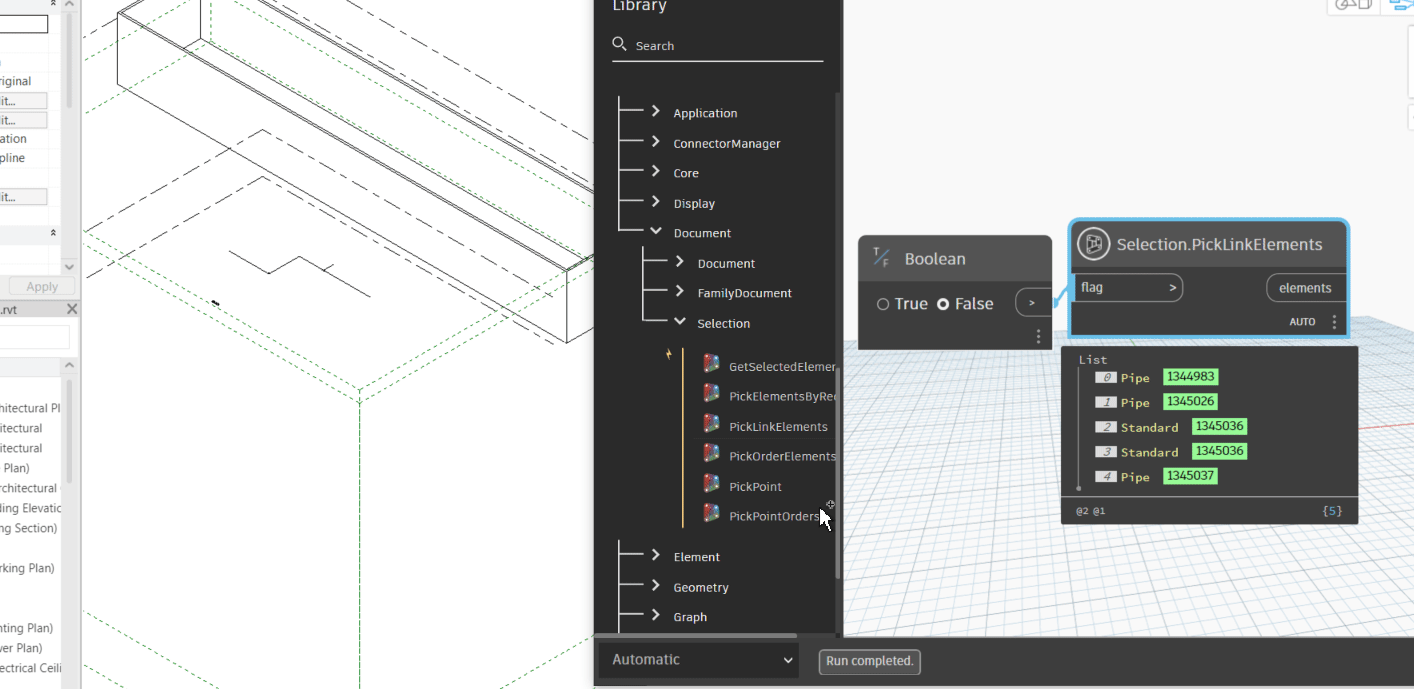

Selection.PickLinkElements.dyn

PickOrderElements(bool)

Pick Select Order Element In Current View

[NodeCategory("Action")]
[NodeSearchTags(new string[] { "selection", "pick", "order", "element" })]
public static List<Element> PickOrderElements(bool flag)

Parameters

flag bool

Returns

List<Element>

list element pick ordered

Examples

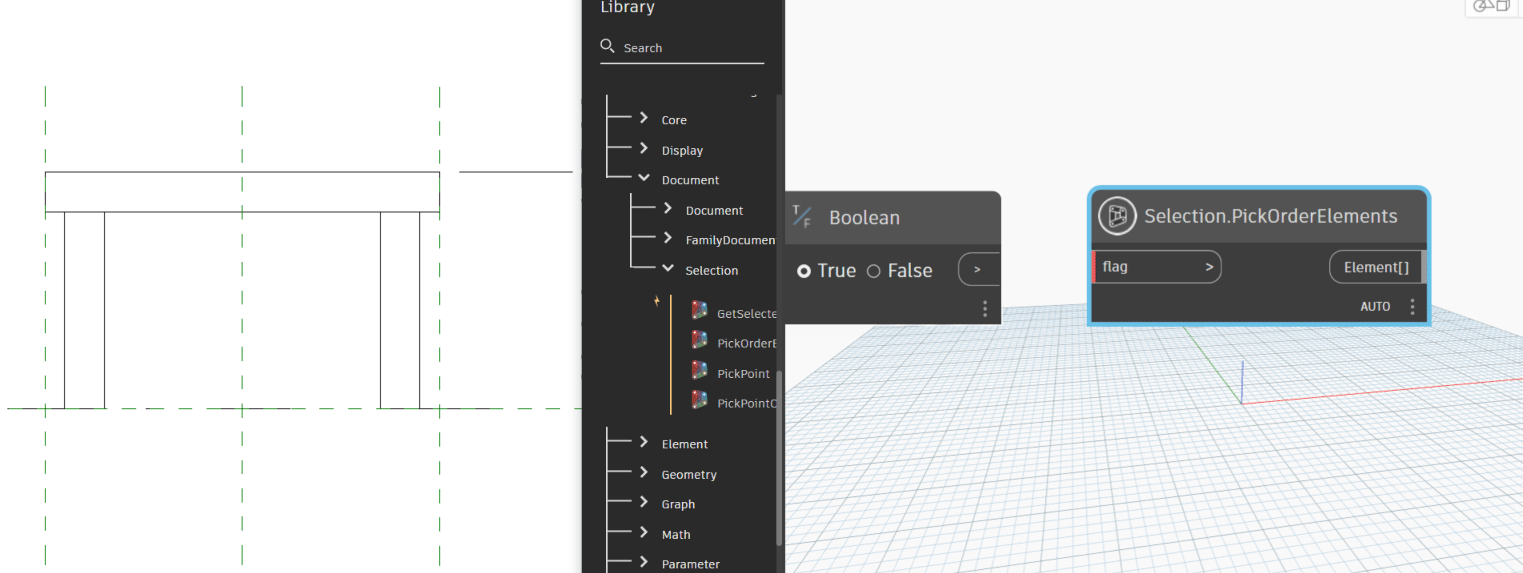

Selection.PickOrderElements.dyn

PickOrderLinkElements(bool)

Retrieves a list of linked elements from the host Revit document based on the user's selection.

public static List<Element> PickOrderLinkElements(bool flag)

Parameters

flag bool

A boolean flag indicating fresh the selection process.

Returns

List<Element>

A list of Revit elements from linked documents.

Examples

Selection.PickOrderLinkElements.dyn

Exceptions

ArgumentException

Thrown when an error occurs during the element retrieval process.

PickPoint(bool)

Return Point Picked In Current View

[NodeCategory("Action")]
[NodeSearchTags(new string[] { "selection", "pick", "point" })]
public static Point PickPoint(bool flag)

Parameters

flag bool

toggle to fresh pick point

Returns

Point

point

Examples

Selection.PickPoint.dyn

PickPointOnCurveElement(bool)

Return list point pick orders on curve element (Pipe, Duct, Cable Tray, Conduit, Flex Duct, Flex Pipe, Wire)

public static List<Point> PickPointOnCurveElement(bool flag)

Parameters

flag bool

toggle true false to fresh pick point

Returns

List<Point>

list point orders picked

Examples

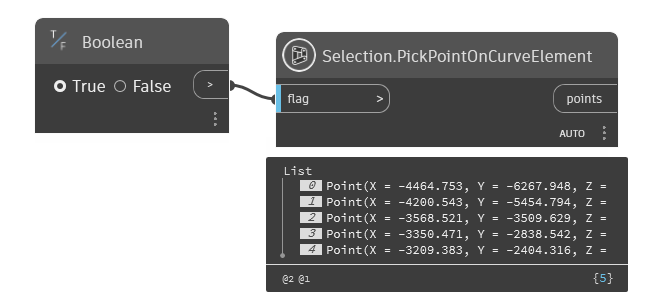

Selection.PickPointOnCurveElement.dyn

PickPointOrders(bool)

Return a list points pick order in Current View

[NodeCategory("Action")]
[NodeSearchTags(new string[] { "selection", "pick", "point", "order" })]
public static List<Point> PickPointOrders(bool flag)

Parameters

flag bool

toggle true false to fresh pick point

Returns

List<Point>

list point picked orders

Examples

Selection.PickPointOrders.dyn

SetSelectedElement(List<Element>)

Set selected element in Revit Project

[NodeCategory("Action")]
[NodeSearchTags(new string[] { "selection", "pick", "link", "element" })]
public static List<Element> SetSelectedElement(List<Element> elements)

Parameters

elements List<Element>

list element need set selected

Returns

List<Element>

list selected element

Examples

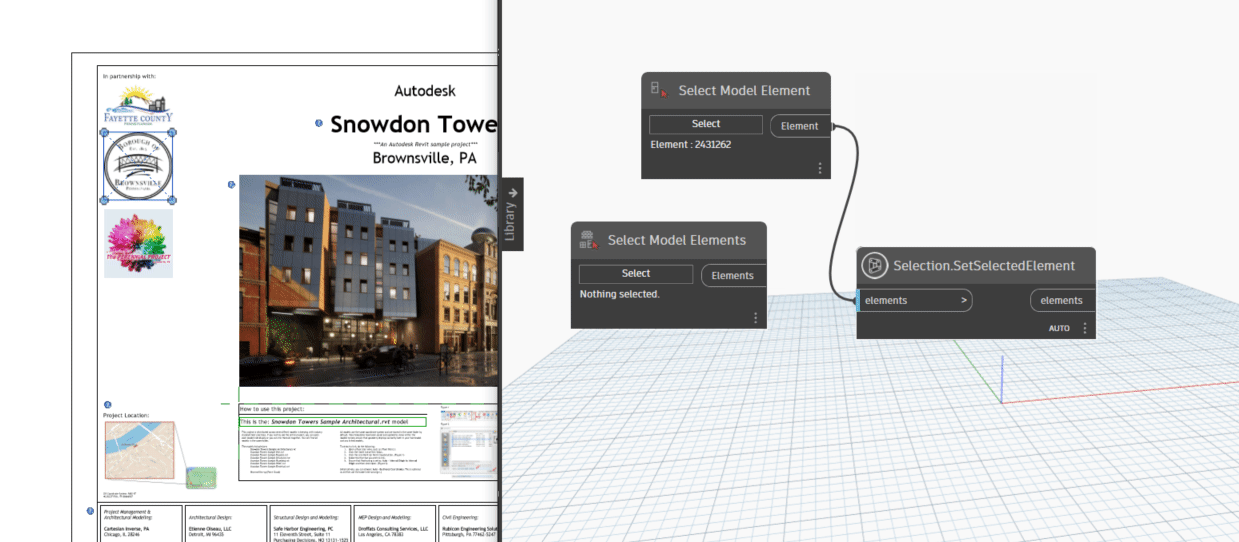

Selection.SetSelectedElement.dyn

ZoomToElement(List<Element>)

Zoom to element in Revit Project

[NodeCategory("Action")]
public static void ZoomToElement(List<Element> elements)

Parameters

elements List<Element>

the list element need zoom to

Examples

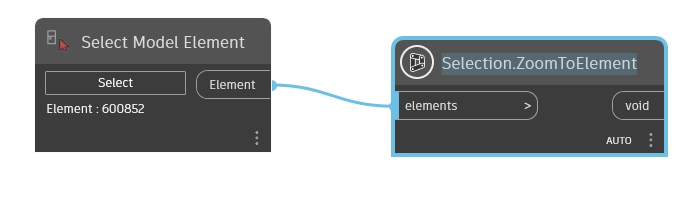

Selection.ZoomToElement.dyn

ZoomToLinkElement(List<Element>, bool)

Zooms to specified elements within a Revit project.

public static void ZoomToLinkElement(List<Element> elements, bool isCropView = false)

Parameters

elements List<Element>

A list of Revit elements to zoom to.

isCropView bool

Specifies whether to use a crop view for zooming (optional, default is false).

Examples

Selection.ZoomToLinkElement.dyn
