Class GraphVisualizer

Namespace

OpenMEPSandbox.Graph

Assembly

OpenMEPSandbox.dll

public class GraphVisualizer

Inheritance

object

GraphVisualizer

Inherited Members

object.ToString()

object.Equals(object)

object.Equals(object, object)

object.ReferenceEquals(object, object)

object.GetHashCode()

object.GetType()

object.MemberwiseClone()

Methods

VisualizeByDestination(Point, Point)

Visualize the graph with source and destination points

public static GeometryColor VisualizeByDestination(Point source, Point destination)

Parameters

source Point

the first node of edge

destination Point

the second node of edge

Returns

GeometryColor

the geometry color of geometry

Examples

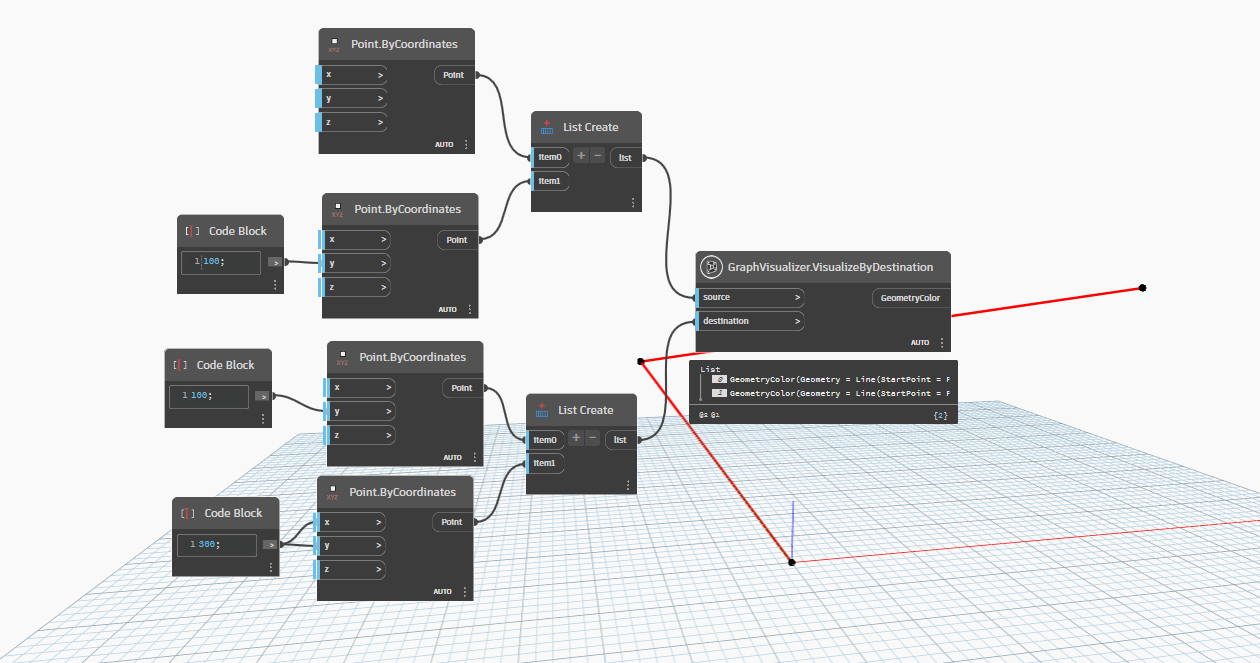

GraphVisualizer.VisualizeByDestination.dyn

VisualizeByEdge(Line)

Visualize the graph with edge

public static GeometryColor VisualizeByEdge(Line line)

Parameters

line Line

edge created by two node

Returns

GeometryColor

Examples

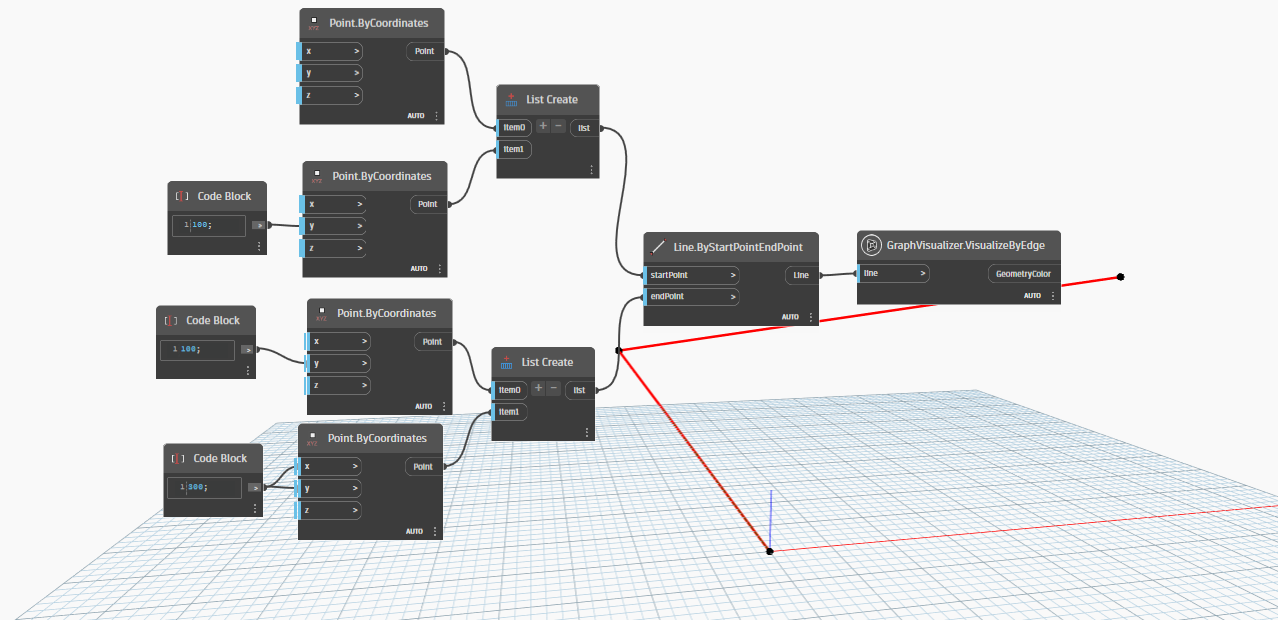

GraphVisualizer.VisualizeByEdge.dyn

VisualizeByGraph(List<int>, List<int>, List<double>)

Visualizes a graph with the given vertex connections and edge weights using 3D points. Determines the maximum weight and creates a 3D point for each vertex, then calculates the coordinates of each point based on their position along a circle with radius proportional to their weight. Returns a list of the generated points.

[MultiReturn(new string[] { "Node", "Point", "Display" })]
public static Dictionary<string, object> VisualizeByGraph(List<int> sources, List<int> destinations, List<double> weights)

Parameters

sources List<int>

A list of integers representing the starting vertices for each edge.

destinations List<int>

A list of integers representing the ending vertices for each edge.

weights List<double>

A list of doubles representing the weight of each edge.

Returns

Dictionary<string, object>

A list of Point3D objects representing the vertices of the graph.

Examples

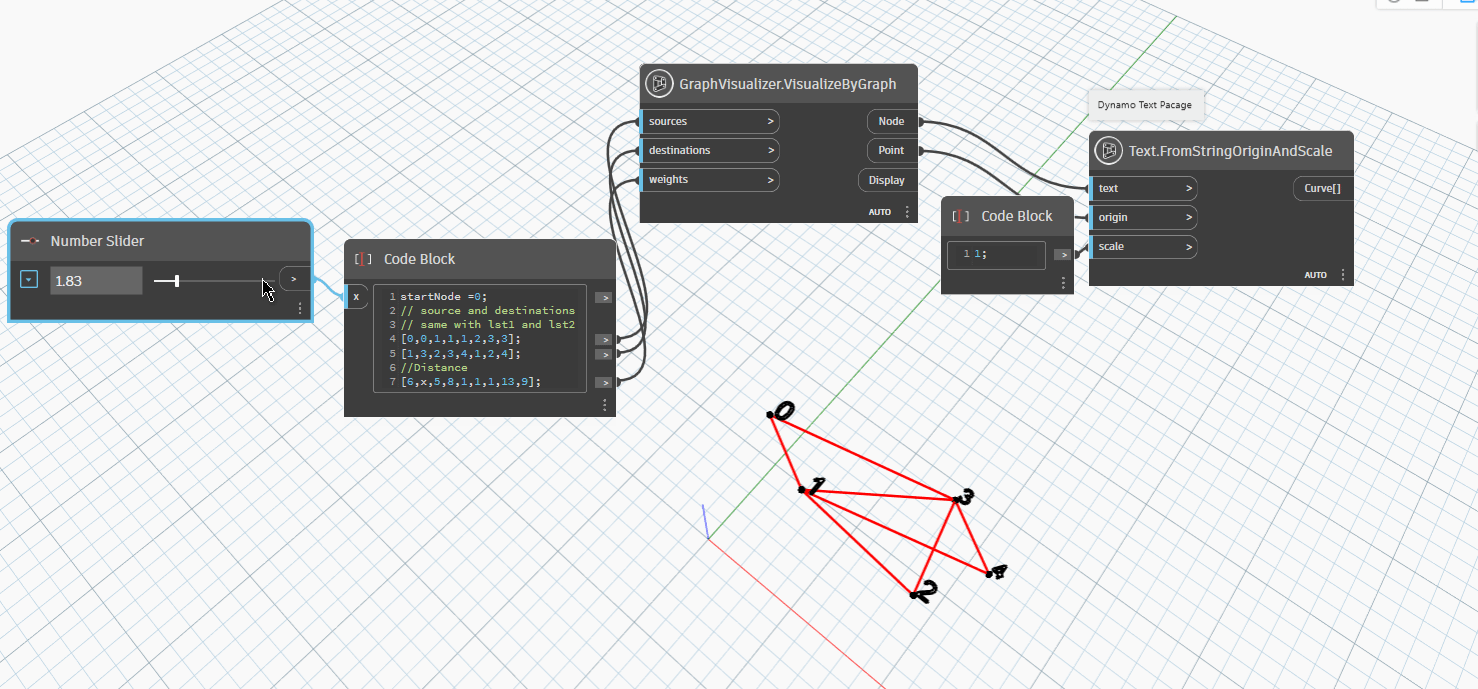

GraphVisualizer.VisualizeByGraph.dyn
